Basics of the Internet

There is a great book called “High Performance Browser Networking” by Ilya Grigorik that contains basic knowledge about networking and data transfer optimizations. In this book author writes the following about CDNs:

Content delivery network (CDN) services provide many benefits, but chief among them is the simple observation that distributing the content around the globe, and serving that content from a nearby location to the client, enables us to significantly reduce the propagation time of all the data packets.

We may not be able to make the packets travel faster, but we can reduce the distance by strategically positioning our servers closer to the users! Leveraging a CDN to serve your data can offer significant performance benefits.

When you think about it, you probably agree with the fact that CDNs make the user experience better, because they speed up website loading. But... wait a minute! How does the CDN do it?

You might say, “Well, when a user loads files from CDN, they are loaded from the nearest server to this user. Easy-peasy.” Yeah, but how does it happen if we use the only domain name for the content?

Futurama Fry, “Not sure” meme

In Uploadcare we offer our clients a CDN along with other optimizations, and we know a lot about the technologies that are used to make content delivery fast, reliable, and secure. In this small series of articles, we are going to share this knowledge with you and explain the magic behind CDN.

Wiring things up

Let us start with basic networking. Let’s say we have two computers that should communicate with each other:

Red square and blue circle representing two computers
Try to imaging that these shapes are real computers

The solution is simple — wire them and the job is done:

Same shapes, but connected with grey curly line
The grey line is an Ethernet cable

Yeah, it works. When computer A wants to send a message to computer B, it transfers the data through the port where the cable is connected to. It’s easy to detect when the communication channel is occupied because there are only two users of this channel. There’s no problem with addressing due to the same reason.

However, this solution is hard to scale. What should we do when we have five computers instead of two? Sure, we can connect them in the same way, but...

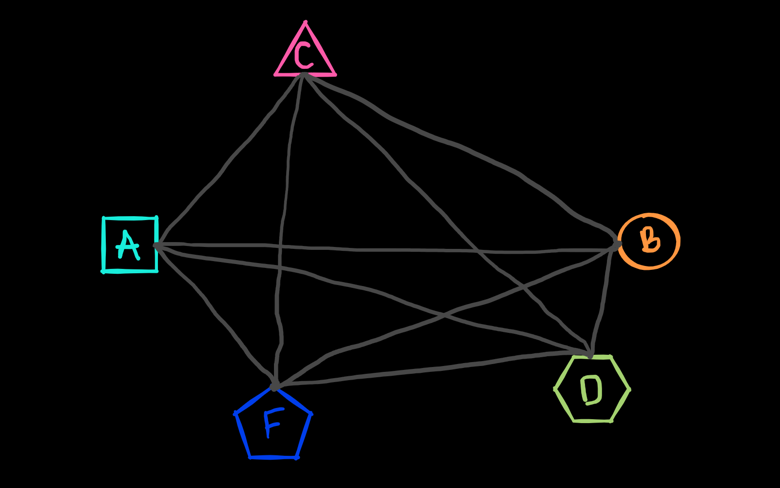

Five shapes connected to each other
Pentagram!

You see that communication quickly becomes a problem. It’s easier to summon Satan with these wires rather than build a clear network. Not only do we need a lot more cables now, but also each computer should have four ports. Moreover, when we want to add a new computer to this network, we have to find a way to add a new port to each existing computer! The topology of this network is way too complex.

In communication networks topology is the arrangement of the elements. There are physical and logical topologies. Physical topology is the placement of the various components of the network, while logical topology is how data flows within a network.

In our case, every device is connected to others, which means that we have a fully connected network, physically and logically. To reduce the number of cables we may choose a different topology. For example, each computer may be connected to its neighbors on the left and the right only:

Same five shapes, but each of them connected to others two only
Way better. No satanism this time!

This is called a ring network. As you see, this type of network does not require too many cables and each computer may have two ports only, but the tradeoff is the necessity of transferring data through the intermediate computers while trying to reach the destination.

Even though using intermediate computers isn’t that bad, there is a much more important flaw in a ring network. The connection relies on the availability of the nodes. If one node of the ring is broken, then the signal can’t be transferred properly.

Different topologies solve different problems. E.g. instead of using a ring network, we might use one central wire to which all the computers are connected. That is, we would get a bus network:

Same five shapes, but now they all connected to the central wire, soldered on both sides
It looks like a typical USA suburbs road system

Now our network does not rely on computers, but it will be broken if the central wire (usually called a bus, a backbone or a trunk) does not work properly. This type of network is harder to maintain because you have to be able to check and repair every inch of the backbone.

To solve the maintenance problem described above, we may use a “helper device” which will receive data from a computer and distribute it through the network. The device is called a hub, while the topology of this kind of network is called a star:

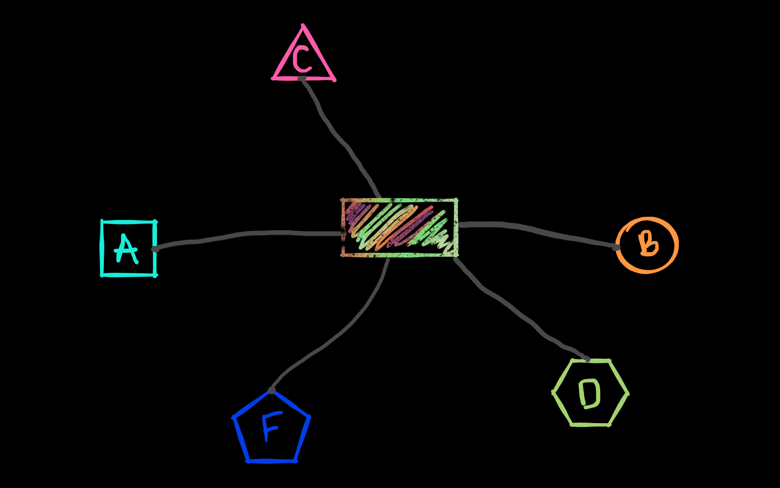

Same five shapes, but now they all connected to the sixth one
Stellar thing in the center is a hub

Even though this network may be broken by shutting down the hub, it’s much easier to maintain — instead of controlling a long cable, we have to control only one device. Also, it’s much easier to connect new nodes — just plug the cable into the hub, and it works.

In real life, we use star networks at home. All the devices are usually connected to one router that receives messages and distributes them when necessary. The Internet itself is a hybrid network, which is combined from the myriads of small networks, each one of those may use any physical or logical topology.

The Internet hierarchy

Alright, we have a network at home that may look like this:

A router, a computer and a laptop connected to it using wire, and a phone and a fridge connected to the router using WiFi
Hope you don’t really have a fridge with Wi-Fi though

But what happens on the next level? What is the way of your request to Google? Let’s see.

First of all, your request will land on the computer that will process it — a Google server:

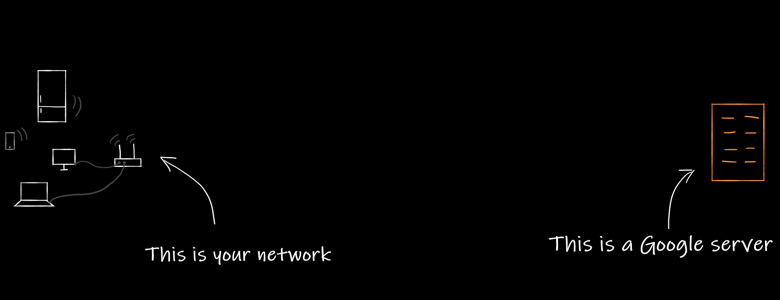

Home network on the left side and a blue rectangle representing a Google server on the right side
Yeah, I know, my drawing skills are blessed by God

But the request doesn’t go straight to the Google server.

Your router connects you with a larger network owned by your Internet Service Provider (ISP). The same goes with Google’s computer:

Same picture, but with two shapes representing ISPs added
By the way, usually a home router is not connected directly to an ISP. There are more routers and other devices between them

Each of those ISPs maintains its network for many of the local networks, not only for yours and Google’s.

If you are connected to the same ISP as your Google server — you’re lucky, because the data may be transferred inside the provider’s network which is fast, secure and reliable:

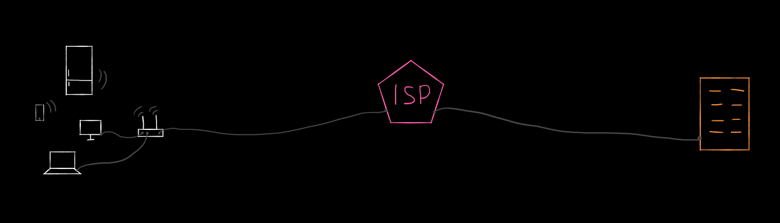

Same home network and a Google server, but they are connected to the same ISP-shape
Eh.. Sergey? Larry?

But in the real world, it is not possible to connect everyone using only one ISP. There are hundreds and thousands of providers. Each ISP has to communicate with each other to make the Internet work properly.

So, the closest real-life example may look like this:

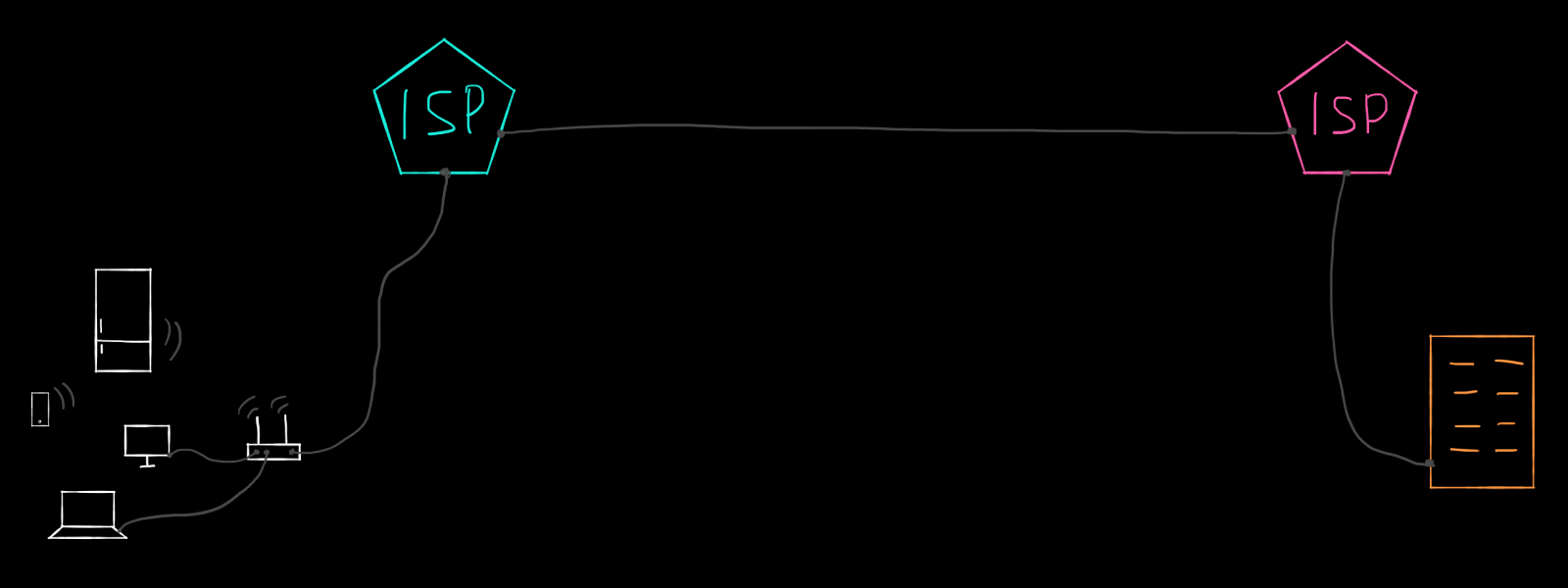

Same home network and a Google server, but now they are connected to ISPs which are connected to each other
In reality even this scheme is not possible

You might see the problem here. If all the ISPs should connect directly then we may encounter the same situation we got at the start of this article — tons of wire! That’s why they are connected using hubs called Internet Exchange Points, or IXPs.

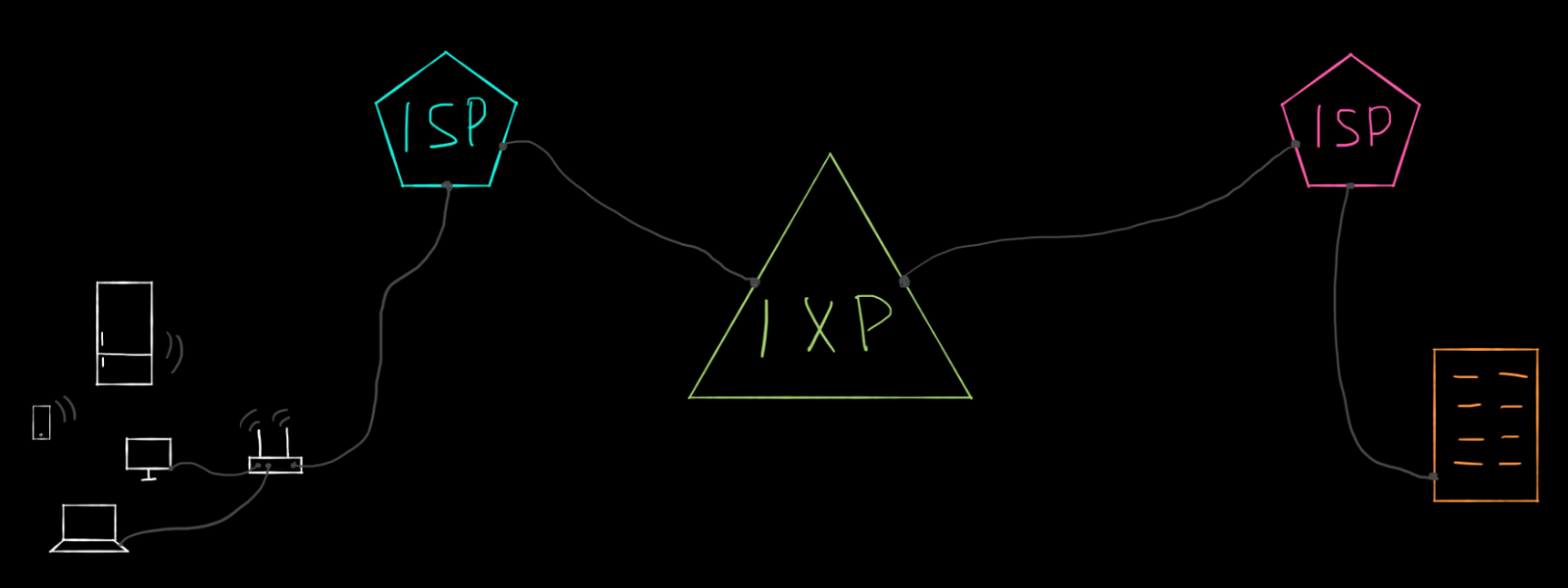

Same complex network, but now ISPs are connected not directly but through an IXP
If we continue adding entities to this scheme, we will run out of shapes. Please, send halp

Our network is already complicated, but there is one more problem — geography.

What if you live in Spain, while the Google computer “lives” in the USA? Well, they should be connected in some way, right?

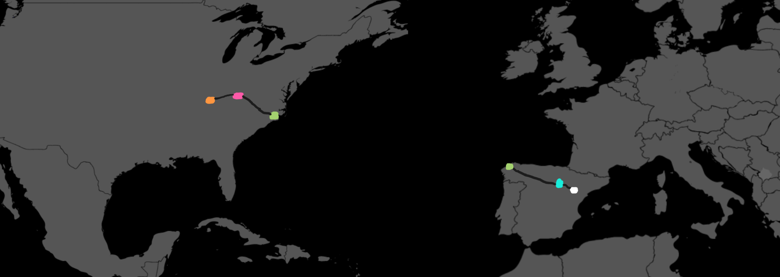

World map, where the Google server and its network is in America, while the home network is in Europe
Color coding is the same; we simply put the network on the map

This way is an underwater cable! You may think that this is a joke, but no, it is not. The continents are connected using undersea cables. It may seem unreliable, and in fact, sometimes it is. But it’s still the best way to connect everything:

IXPs in America and Europe are connected using rainbow colored undersea cable
The cable is not that thick though

Now it looks like we know how to connect two computers using the Internet. But here’s where things become mad.

First, there are lots of ISPs.

Second, there are lots of IXPs.

Third, there are lots of undersea cables! Check the map of them dated 2021:

World map with a lot of color lines on it representing undersea cables
At the moment when we’re writing this article, there are 485 cables laying in the oceans

Finally, not every ISP is connected directly to IXP. Sometimes they are connected to “parent” ISPs.

Even this is not the end, the cables are different: some of them transmit the signal faster, while others do it slower. What’s more important, some of them cost more than others to use. You don’t think that the connection between ISPs and IXPs is free of charge, do you? ISPs pay each other and IXPs for using the network each of them has. Some providers charge more, others charge less.

That’s why the signal your computer sends usually does not go by the shortest path. The signal goes by the cheapest one.

Transmission medium

A transmission medium is a system or substance we use to transfer the signal. When devices are connected using Wi-Fi, the medium is air. When your PC is connected to your router, the medium is usually a copper wire. The backbone of the Internet — the undersea cables — is made of optic fiber.

The medium defines the conditions in which the communication can be done.

For instance, copper wires are affected by any electrical noise. That’s why the twisted pair is actually “twisted” — to prevent electromagnetic interference. Such cables also may be covered with a special material that “shields” the transmitted signal.

At the same time, optical fiber does not care about electrical noise, because it’s just a “light pipe.” Even more, due to the techniques used to transfer the data, the speed of transmission may be much higher in optical fiber than in copper wire!

Now you may say, “The Internet is based on undersea cables and this is kinda sick. Why not use satellites if we can transmit data through the air?”

Sure, it is possible to connect computers using satellites. E.g. GPS uses satellites and it works. First of all, it’s cheaper to simply wire the computers up. Besides, the network laying on the ground (or in the sea) is much easier to repair.

Moreover, let’s do the quick math. Let’s recall the connection we described earlier. Let’s say that the orange dot was Nashville, USA, while the white dot was Zaragoza, Spain:

Same world map with networks and the undersea cable between them
According to this map our ISP’s office is somewhere in Iberian System, huh

The distance between these cities is 7200 kilometers. If we connect them using a direct wire, the signal transmitted from Zaragoza will reach Nashville in 36 milliseconds, because the speed of light in optic fiber is around 200 000 km/s (it’s 1.5 lower than in the vacuum).

At the same time, there might be a satellite somewhere in the middle of the sky, between Zaragoza and Nashville. Historically, communication satellites were deployed on geostationary orbit, the altitude of which is 35 786 kilometers. Our signal should go from Zaragoza to the satellite and then from the satellite to Nashville.

Let’s omit trigonometry and say that the total distance is 2 × 35 786 kilometers, which is 71 572 km.

At the same time, the speed of the signal that goes to the satellite and back is approximately 300 000 km/s, because radio waves are used for transferring the signal. The total trip time is 238 ms.

So, the time that signal goes from Zaragoza to Nashville by direct wire is 36 milliseconds. For the satellite, this time is 238 ms.

We have not said anything about the fact that all those intermediate points, such as ISPs, IXPs and the rest of them, slow the signal down, making the real transferring time bigger than 36 ms. But at the same time, we haven’t said anything about the quality of the signal, which is usually not so good for transmissions over the air.

So, you see why the world is still using cables. In the foreseeable future, the status quo may change, due to the massive deployment of satellites (e.g. by Starlink) to a low Earth orbit. Lower altitude allows the satellites to maintain a connection with much less latency.

However, it’s highly unlikely that the current wired infrastructure disappears, which means that if you maintain an Internet service you have to use services like CDNs to serve data closer to users.
